Suspension




Adjustable Ride Height Reaction Plates

This original R.R.R design has been copied, re-designed & branded as 'crude'!

We'll keep it just the way it is!...

  • It now has over 10 years track record!
  • It is simple & effective!
  • As with all suspension fastenings/mountings, all of it's components are fixed in a 'double clamp' fashion, using a minimum amount of stressed components - above all we consider this safty aspect an 'absolute must'! Ride Height Adjustment Made Easy!Ride Height Adjustment Made Easy!

    Ride-height/corner weight can now be adjusted in minutes rather than hours. Well worth it, just ask anyone who has tried adjusting the standard set up! CNC laser-cut for excellent fit and available in steel spec or hard anodised aluminium race spec.

    Kit includes: Reaction Plate, Adjusting Cams, All Necessary Fasteners, Full Fitting Instructions

    Price: £145.00 (steel)£180.00 (aluminium-race use only)

    New Spec, Low Level, Adjustable Reaction Plate!

    Essential for full race cars!
      Over a period of about 10 years producing our now famous, original adjustable reaction plate, we have now upgraded it specifically for cars with a low ground clearance by re-designing it's profile. This makes it closer to the sump, stronger, straighter, and therefore further away from the ground!

    • As our original adjustable reaction plate
    • Made with a 'lower profile'
    • For low clearance & race cars
    • Please note that this plate may need slightly modifying for sump clearance - we have made it a snug fit, close to the sump, but as we all know - these cars can vary some what!

    Price: £145.00

    Complete E-Type Handling PackagesNOW AVAILABLE!

    Full Handling Packages

    For All 6 Cylinder - Fast Road Cars

  • Single & Platform Steel Adjustable Dampers
  • Uprated Torsion Bars
  • Uprated Front Roll Bar & Bushes
  • Solid Rack Mounts
  • Uprated Cage Mounts

    Price: £1460.00

    For All 6 Cylinder - Fast Road/Track Day Cars

  • Single & Platform Aluminium Adjustable Dampers
  • Uprated Rear Springs
  • Uprated Front Torsion Bars
  • Adjustable Reaction Plate
  • Uprated Front Roll Bar & Bushes
  • Solid Rack Mounts
  • Uprated Cage Mounts
  • Uprated Radius Arm Bushes

    Price: £2095.00

    For All 6 Cylinder - Full Race Cars

  • Double & Platforn Aluminium Adjustable Dampers
  • Full Race Rear Springs
  • Full Race Torsion Bars
  • Adjustable Reaction Plate
  • Full Race Front Roll Bar, Solid Mounts & Adjustable Spherical Joint Links
  • Solid Rack Mounts
  • Uprated Cage Mounts
  • Full Race Radius Arm Bushes
  • Full Race poly Front Wishbone Bushes

    Price: £3065.00

    For All V12 S3 - Fast Road Cars

  • Single & Platform Steel Adjustable Dampers
  • Uprated Front Roll Bar & Bushes
  • Solid Rack Mounts
  • Uprated Cage Mounts
  • Adjustable Steering Valve

    Price: £1365.00

    For All V12 S3 - Fast Road/Track day Cars

  • Single & Platform steel Adjustable Dampers
  • Uprated Rear Springs
  • Uprated Front Torsion Bars
  • Uprated Front Roll Bar & Bushes
  • solid Rack Mounts
  • Uprated Cage Mounts
  • Adjustable Steering Valve

    Price: £1925.00

    For All V12 S3 - Track day/Race Cars

  • Double & Platform Aluminium Adjustable Dampers
  • Full Race Rear Springs
  • Full Race Front Torsion Bars
  • Full Race Front Roll Bar, Solid Mounts & Adjustable Spherical Joint Links
  • Solid Rack Mounts
  • Uprated Cage Mounts
  • Full Race Radius Arm Bushes
  • Full Race poly Front Wishbone Bushes
  • Adjustable Steering Valve

    Price: £3095.00

    Uprated Torsion Bars

    torsion bars

    CNC machined from aviation-spec steel, these torsion bars are available in fast-road, race & full race hollow specification for the ultimate racer! Through collaborating with leading competitors in the FIA Historic GT Championship, we have developed the optimum spring rate for racing. What's more the ultimate racing bars are hollow and so 30% lighter than stock.

    For all 6 cylinder E-Types:

  • Fast Road/Track Day Price £525.00 per pair
  • Full Race Solid Price £595.00 per pair
  • Full Race Hollow Price £625.00 per pair

    For all S3 V12 E-Types:

  • Fast Road/Track Day Price £585.00 per pair

    For all 6 XK's:

  • Fast Road/Track Day Price £845.00 per pair


    Anti-Roll Bars

    Click here to enlargeClick here to enlarge

    To help curb excessive roll in corners, we have developed a range of adjustable uprated anti roll bars for the 6 cyl E-Type. Whilst we offer a spec designed to suit all road cars, thanks to the modular construction of these bars, we can easily supply bespoke sizes for racing applications. Bars come complete with appropriate mounting bushes.

    • 3 position adjustable front: Price £225.00
    • 2 position adjustable rear: Price £225.00

      Roll Bar Bushes And Links

    • For full race use only, we can supply billet aluminium bushes and Rose-jointed linkages for the mounting of your anti roll bar.
      Price £275.00 (set)

    • V12 "E" non-adjustable uprated roll-bar
    • Price: £285.00

    • FIA approved (non-adjustable) 6-cyl "E", 7/8" or 1" diameters available.
    • Price: £225.00

    • Specials made to order. Contact us with your requirements.

    Springs

    springs

    For performance cornering, your car's suspension needs to be lower and stiffer. We can offer advice and supply springs with a stiffness and ride height to suit your application.
    Please contact us for details.
    Examples: 4 rear springs made to suit £195.00, front springs (XJ, Mk2 etc) from £225.00

    Shock Absorbers - Steel, Ride Height & Single Adjustable

    20 step damping adjustment

    We can supply high quality shock absorbers for fast road use. With easily accessible 20 step damping adjustment and threaded spring preload adjustment, you could arrive at a track day on road settings and be ready for ultimate track handling within a few minutes. At the end of the day, an equally short amount of time will see you ready for the trip home!
    Price: £120.00 each (springs not included)

    Shock Absorbers - Aluminium, Ride Height & Single Adjustable

    20 step damping adjustment

    As our steel version but in a lightweight aluminium construction
    Price: £175.00 each (springs not included)

    Shock Absorbers - Aluminium, Ride Height & Double Adjustable

    Double damping adjustmentDouble damping adjustment

    As our aluminium version but with double (separate bump & rebound) adjustment
    Price: £245.00 each (springs not included)

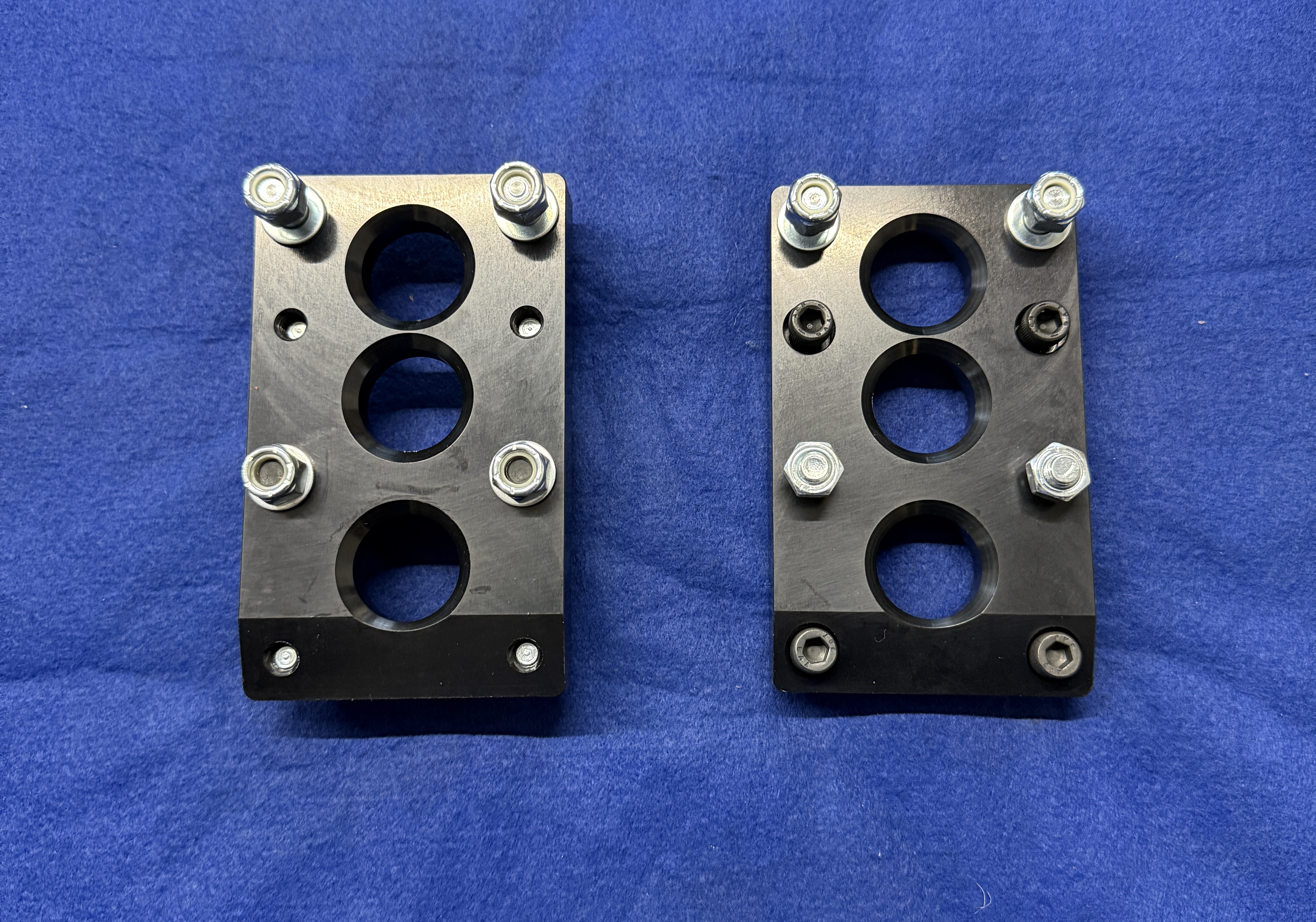

    Billet Aluminium Solid Steering Rack Mounts

    • E-Type

      E-Type Spec
      These beautifully crafted mounts improve "feel" and directness of your E-type's steering.
      Price(Road spec): £135.00 (pair)

    • XK

      XK Spec
      Now also available for XK's
      Price: £135.00 (pair)

    • V12-E

      V12-E Spec
      Now also available for your V12-E
      Price: £135.00 (pair)



    Stub Axle Bearing Spacer

    stubspacer

    Intended for track use, these spacers overcome the terrifying problem of brake pad "knock-off", where after hard cornering, the brake pedal disappears to the floor! This is caused by the stub axle which holds the wheel in place. Under extreme loads it can flex, which in turn allows the brake disc to push the pads back into the brake calliper. Another axle-related problem with Jaguars is in the adjusting of one's wheel bearings: the final adjusted position depends purely on an approximately adjusted castle nut, held by a split-pin!
    These spacers serve two purposes: firstly they increase the effective diameter of the stub axle by 25%, secondly they positively locate both inner and outer bearings, allowing the adjuster-nut to be fully tightened. This eliminates axle flex and so brake pad knock-off.
    Two types are available, depending on whether you have early or late (Series 2 XJ onwards) stub axles.

    Price: £135.00 (Late type large stub axle), £115.00 (Early type small stub axle)

    Heavy Duty, Uprated Rear Radius Arm Bushes

    Heavy Duty Radius Arm Bushes!

  • Available For Most IRS Type Models
  • Minimises Axle Tramp

    Price: £125.00

    Uprated Rear Cage Mounts

    Make The Back More Taut

    Under fast driving conditions, suspension feedback to the driver can be impaired by soft rear suspension cage mountings, resulting in "vague" handling. These cage mounts are made with a neoprene rubber compound to reduce movement of the suspension assembly. Fit all 6-cylinder and V12 E-Types and pre-XJ saloons.

    Price: £125.00 per set of 4 - NOW AVAILABLE FOR XJ/XJS - (early cars)



    Polyurethane Bush Range

    New polyurethane bush range

    Poly bushes are the antidote to vague handling - improving suspension feedback without the harshness of a full racing solid bush setup.

    Front wishbone kits, price: £120.00

    Roll bar kits (incl link arm bushes), price: £42.00

    XJ type steering rack mounts, price: £60.00

    Individual bushes and other kits available - please contact us with your requirements.

    All Prices Quoted Are Exclusive Of VAT And Delivery
