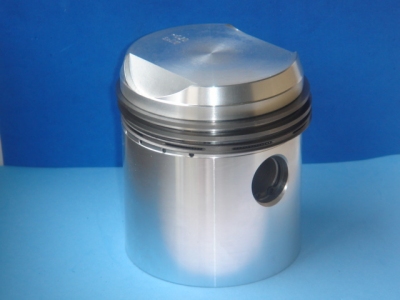

Our piston range has now moved into a new dimension - In addition to our well-established custom forged piston service, for those at the top level of racing, we can reveal our latest weapon. Designed using state-of-the-art 3D CAD equipment and manufactured by the undisputed piston gurus at Cosworth, these new pistons are like nothing previously seen on a Jaguar. Whilst up until now, the Cosworth pistons available for the XK piston have been based on the original 50's design, our crown design has been developed to ensure that the air/fuel mixture is forced into an optimal space around the spark plug, allowing higher compression ratios than were previously conceivable without the usual danger of detonation on the shrouded face. Lighter than any other assembly we know (Cosworth promised there was not another gramme could be squeezed from our design!), they are available either for conventional length con-rods, or in a long-rod format (seriously light!). Make no mistake, these are the best Cosworth pistons available for the XK engine, and are exclusive to us! We can also offer a range of pistons for XK 6-cyl and V12 engines from standard cast pistons to big-bore forged piston conversion kits- up to 4.5 litresfrom the 6-cylinder on a standard crank (Growing to 4.9 litres with our long stroke crank kit!), and 6.1 litres from the V12 (V12 long strokes are available to order- contact us for details).
Price£595.00 per set
Price: From £10.00 per piston - (new)
Price:£375.00 per set (3.8/4.2)
For racing applications, we recommend the use of these heavy-duty wide-blade rods.
They are reconditioned, shot-peened and supplied ready to fit with new heavy-duty bolts and nuts.
These rods have been safely used in engines developing over 330BHP.
Alternatively, we can supply Carrillo rods for the ultimate race specification.
Price: £98.00 per set of 12 assemblies
Very easy to use & more importantly very accurate & lets you know if your rod bolts are perfect or substandard quality Price: £68.50
Price: £210.00 per set
Full race engines sometimes suffer from the main bearing caps "fretting" against the cylinder block,
due to insufficient clamping force from ancient design bolts.
Price: £149.00 per kit
We can supply exchange, reconditioned and modified cranks. Essential for racing.
Price: £POA
Long-stroke cranks are available for those engaged in the never-ending search for more CC's!
Price: from £1250.00 - Modified (SA Welded standard 4.2 crank) to £3000.00 - Billet
Price: £24.95 per set
These plates bolt between the sump and block and "wipe" the oil mist from the crank
to minimise windage losses.Note:Due to the individuality of engines, these
plates are not supplied ready-to-fit and will require matching to your own unit. They are still however
a far quicker and easier option than making your own from scratch!
Price: £48.50
Traditional rubber bonded dampers can suffer from the rubber perishing or becoming contaminated.
At best this will result in the outer ring moving slightly and so giving incorrect ignition timing
readings, at worst the ring could come separated at high revs....
These dampers use a fully enclosed silicone fluid as the damping medium which can absorb torsional
vibrations at all engine speeds. The timing marks are also solidly linked to the centre, ensuring
reliable timing every time. Kit comes with all necessary brackets and fasteners and a new anodised
aluminium pulley.
Price: £475.00
These 'beautifully made' anodised aluminium plugs 'set off' an engine rebuild along with being a modern, lightweight material.
Price: £34.50 per set Aluminium, magnetic gearbox drain plug Price: £6.60
Superceding our high-capacity pump, this modified pump has been developed in
conjunction with the original manufacturer and offers 30% increased flow over the standard setup.
Price: £120.00
Price: £560.00 - To suit early spec engines

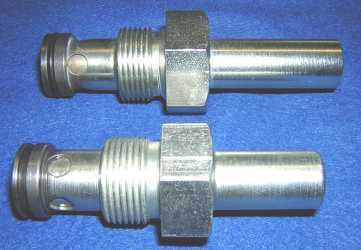

We can now offer our redesigned relief valve for increased maximum oil pressure for high power engines. By virtue of a higher capacity body and
an uprated internal spring, peak oil pressure is raised 25%
price: £75.00
Big-bore oil pickup pipes available for E-type and XK150
Price: £67.00
For E-types only. Kit comes with pickup pipe as above and uprated sump baffle to help
prevent oil surge under heavy cornering.
Price: £82.50

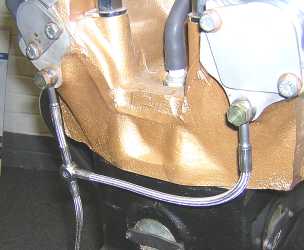

Our new specification braided cam feed pipe features stainless steel construction throughout and is backed by a lifetime guarrantee.
These camfeed pipes will not crack under vibration and also make an attractive alternative to the factory item.As a further bonus, we
supply them with a vastly improved sealing washer, eliminating the ever-present leak found to the rear of so many XK engines.
Price: £78.00
This pipe provides a return for those using a side-exit oil filter housing in conjunction with an E-type or MOD sump.
price: £46.00
This kit allows you to convert from the old canister type oil filter to the modern (and
more effective!) scew-on type. Please contact us for applications. Kit includes: adaptor, all fixings and seals, new filter.
price: £59.00
We have now had our own starters produced. No more adapter plates, these have a bespoke mounting flange to ensure exact location.
The starter itself is of the gear reduction type, bringing twice the cranking torque whilst drawing only half the current of the original item. And they only weigh half as much!
drawing half the current!
Fitment:
Price: £220.00
For the dedicated racer we have these excellent flywheels which use a smaller diameter ring gear
and an offset, high-torque, geared starter motor for reduced inertia. Machined to take 7.25" clutch.
Kit includes: flywheel, starter motor, new, uprated flywheel bolts.
Price: £755.00
Price: £340.00
Price: £385.00
Price: £445.00
Standard Clutch Sizes: Road lightened, faced, zeroed (18-22 lbs) Exchange £195.00
For all models.
Price: XK120, 140, 150, MK7 etc £60.00
High spec from ARP - Do you want to be worrying about the quality of the bolts securing your flywheel, whilst it spins at
6000 rpm six inches away from your ankles?
Clutches for all applications available. Contact us for details.
Stiffer engine mounting rubbers for 6 cylinder E-Types, Mk2's XK's etc. to match
the increased power of your engine. Overpeened construction ensures a fail-safe
installation that won't let you down!
Price: £52.00 per pair (Road) £90.00 per pair (Race)
Price: £60.00 per pair
We have now reproduced the following parts:

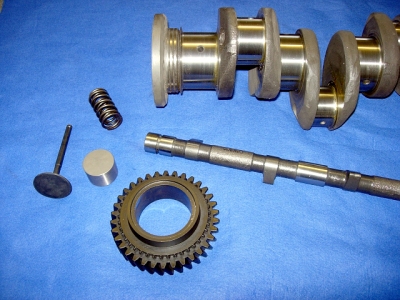

Engine Component Coating Service
Available For Many Engine Components

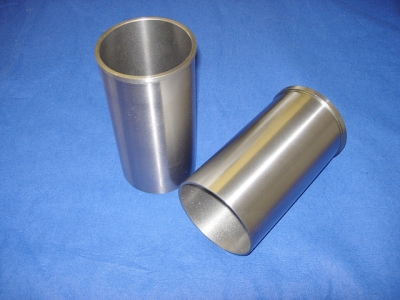

'Top Hat' location Liners
Con-Rods
Price: £465.00
Price from £1700.00
Heavy Duty Rod Bolts
Often overlooked in the preparation or overhaul of race engines, rod bolts have a hard time -
enduring the shock loads of every power cycle in your engine. Should you really leave such
responsibility to a standard item (let alone a 30-year old standard item!)? For about £30.00
more than a set of standard bolts and nuts, we offer our uprated bolt and nut set, manufactured
by ARP,one of the world's premier specialist fastener manufacturers.
For 6 cylinder engines, includes bolt, washer and nut.
Professional Bolt Stretch Gauge
High Tensile Head Studs
Again, should a 30-year old stud be trusted to clamp the head gasket in your performance Jaguar? ARP quality cannot be beaten.
Available for 3.8 and 4.2
Main Bearing Stud Kit
Our solution? Fit this stud kit and clamp your caps down to 130lbft!
Crankshafts
Lipseal Crank Conversion
When rebuilding your engine give some thought to this conversion. How many people
do you know who've had trouble with the rear crankshaft "rope seal" leaking? Rectifying
a leaking rope involves removing the crank, which in turn involves removing the engine!
Just consider how the labour bill for this would have paid for our conversion which replaces
the seal with a modern one-piece item, as found on any modern car. Other cheaper designs have
tried to use a two piece seal, as found on nothing this century!
This conversion is available for all 6 cylinder XK engines.
Kit includes: modified, ground and balanced crankshaft (exchange), new flywheel, modified rear seal housing (exchange).
Price: £695.00
4.2 Crankshaft sludge plugs
Replacement for Jaguar part number C23761.
Crankshaft Scraper Plates
Fluid Crankshaft Harmonic Damper
Aluminium Oil Gallery Plug Set
High-Flow Oil Pumps
High-Capacity V12 Oil Pumps
Price: £595.00 - To suit later spec engines - (includes early spec drive gear)
Uprated Oil Relief Valve
Big-bore Pickup Pipes
Baffled Racing Pickup Pipe
Braided Camshaft Oil Feed Pipes (New spec)
Oil Return Pipe
Oil Filter Adaptor
High-Torque Geared Starter Motor
We can also supply a starter for V12's for £295 and an offset item for special applications for £330.
Offset Starter And Flywheel
New Standard 6 Cylinder Flywheels

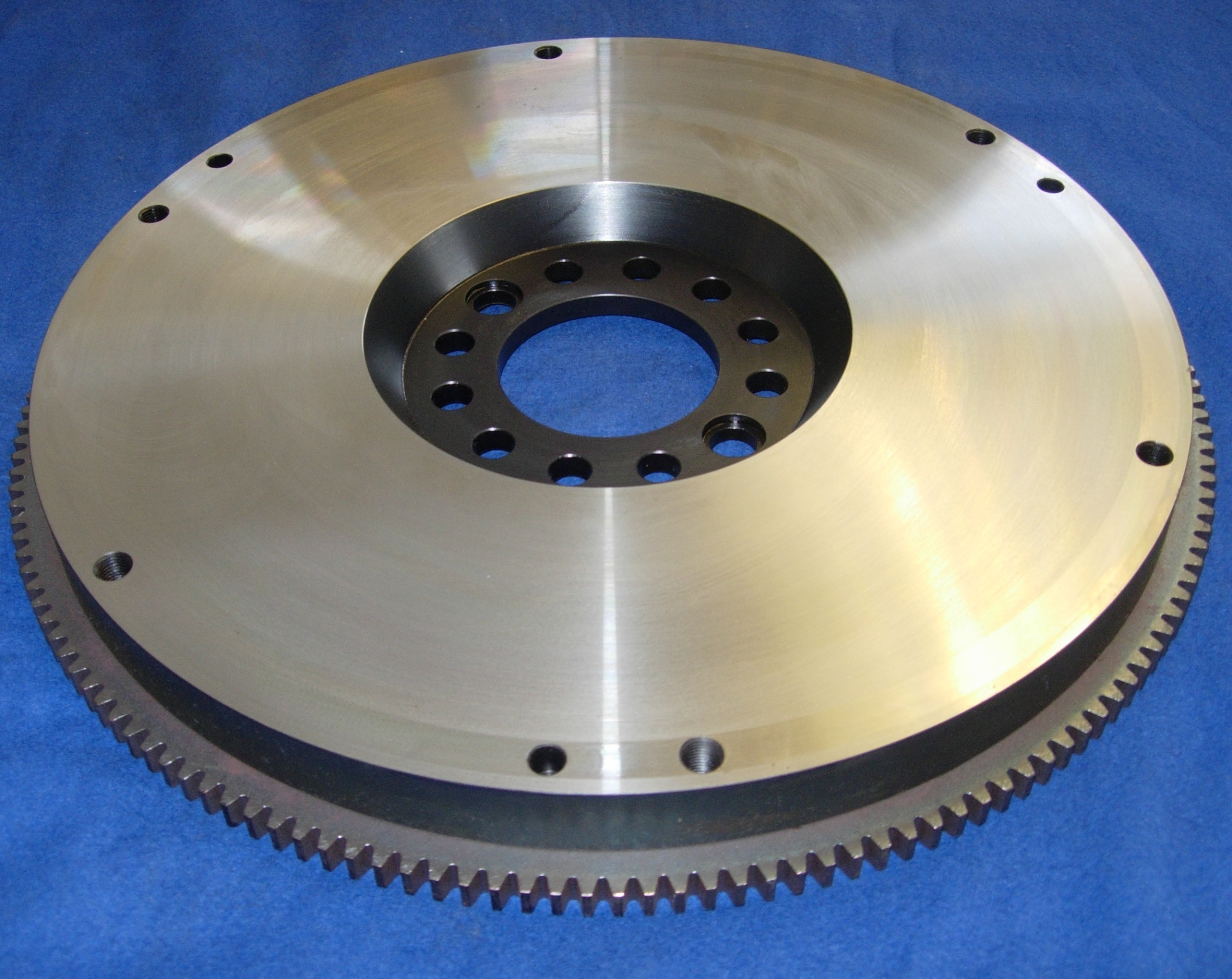

New Standard V12 Flywheels

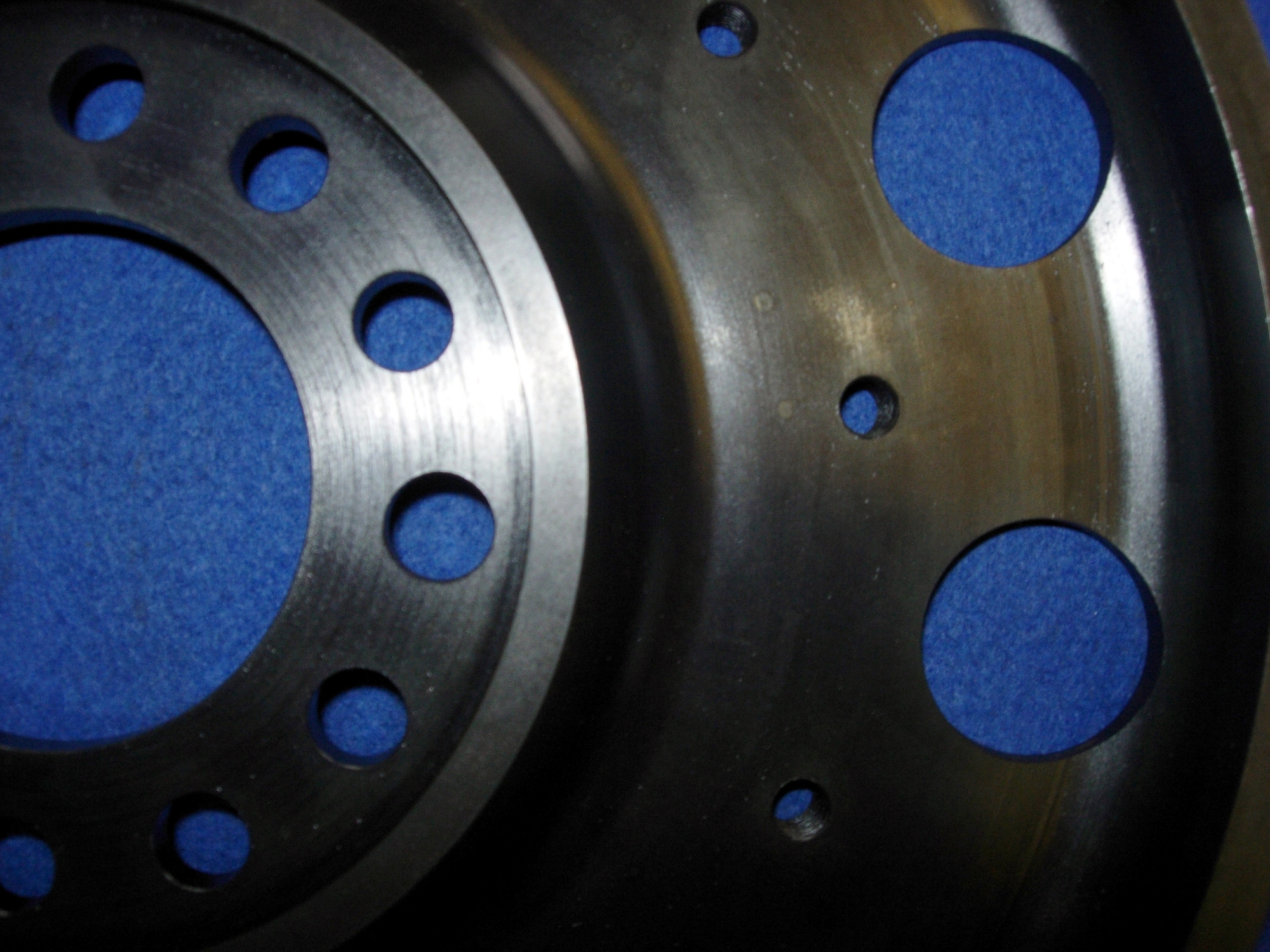

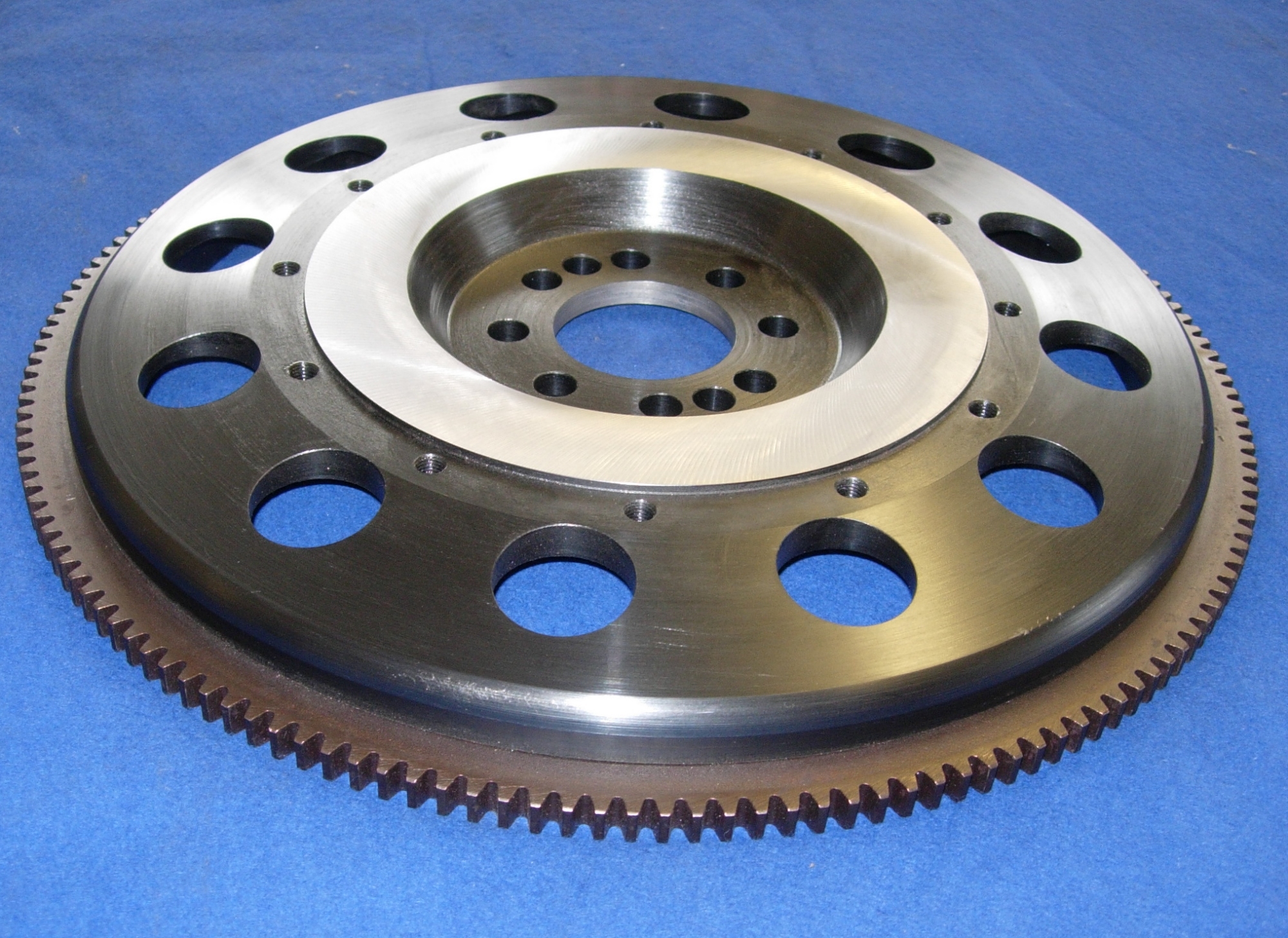

New Race Flywheels
Flywheel Modification Service
Surcharge for non-Exchange of a servicable unit (Subject to availability) £110.00
Ring Gear replacement (6 cyl models) £135.00
Ring Gear replacement (12 cyl models) £205.00
Shrink Fit Ring Gears
Price: 3.8 MK2, E-Type, 4.2 E-Type,XJ6 etc £60.00
Price: V12 E-Type (late) & all manual V12s (XJ, XJS etc) £128.00
High Tensile Flywheel Bolts
Price per set: £72.00
Clutches
Standard
Uprated
Sintered
Uprated Engine Mounts
Billet Aluminium Engine Mounts
Heavy Duty 'XJ Range' Engine Mounts
Brackets and Locktabs
Part Number Description Price C13615/1 Timing chain damper for early 3.4 and 3.8 engines £26.50 C10333 Locktab for Hydraulic Timing Chain Tensioner £1.20 C20397 Locktab for Lower Timing Chain Damper No C21815 £1.20 C21831 Locktab for Lower Timing chain Damper No C13614/1 £1.20 C21793 Oil Pickup Pipe Supporting Strut (On Oil Pump) £2.25 C21849 Oil Pickup Pipe Supporting Strut (On Centre Main) £8.50 C21850 Clamp for Oil Pickup Pipe (Attaches to C21849) £6.25 C33917 Locktab for Camshaft (late 6-cyl and all V12) £1.20 C30176 Locktab for Jackshaft (V12) £1.20 All Prices Quoted Are Exclusive Of VAT And Delivery
